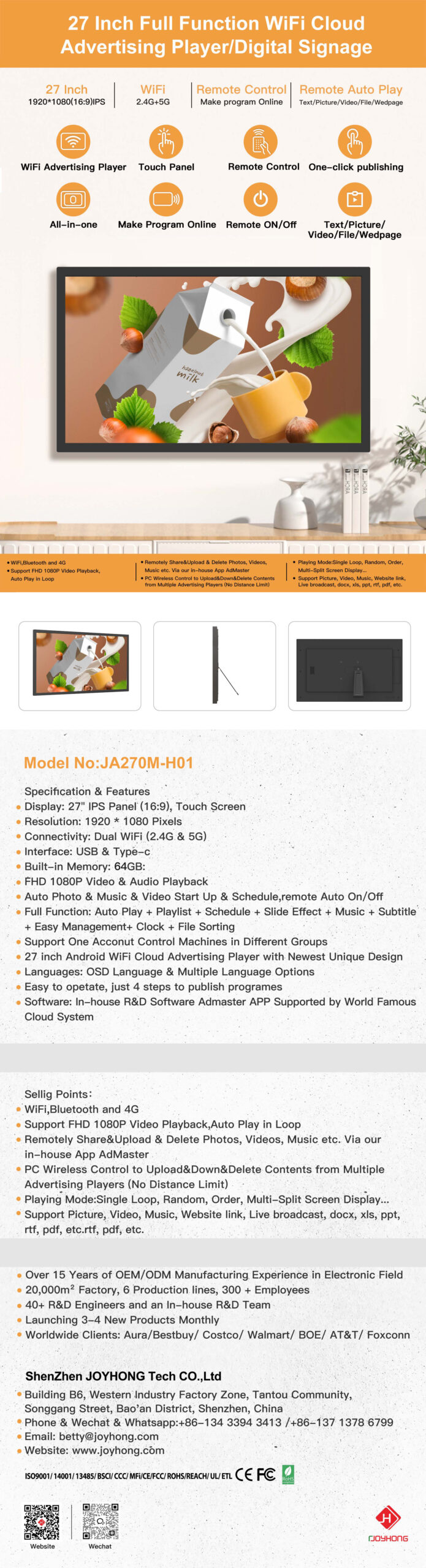

27 Inch All In One Advertising Player/Digital Signage ( Touch Screen / IPS 1920*1080 Pixels)(JA270M-H01)

$99.00

  • WiFi,Bluetooth and 4G
  • Support FHD 1080P Video Playback,Auto Play in Loop
  • All in One Function, Customizationis available
  • Remotely Share&Upload & Delete Photos, Videos, Music etc. Via our in-house App AdMaster
  • PC Wireless Control to Upload&Down&Delete Contents from Multiple Advertising Players (No Distance Limit)
  • Playing Mode:Single Loop, Random, Order, Multi-Split Screen Display…
  • Support Picture, Video, Music, Websitelink, Livebroadcast, docx, xls, ppt, rtf, pdf, etc.

Features

  • FHD 1080P Video&Audio Playback Function
  • Auto Photo&Music&Video Start Up & Schedule Auto On/Off
  • Main Function:Auto Play + Playlist + Schedule + Slide Effect+ Subtitle + Easy Management+ Clock + File Sorting
  • Special Features:Motion Sensor+Remote Control+Auto Rotation

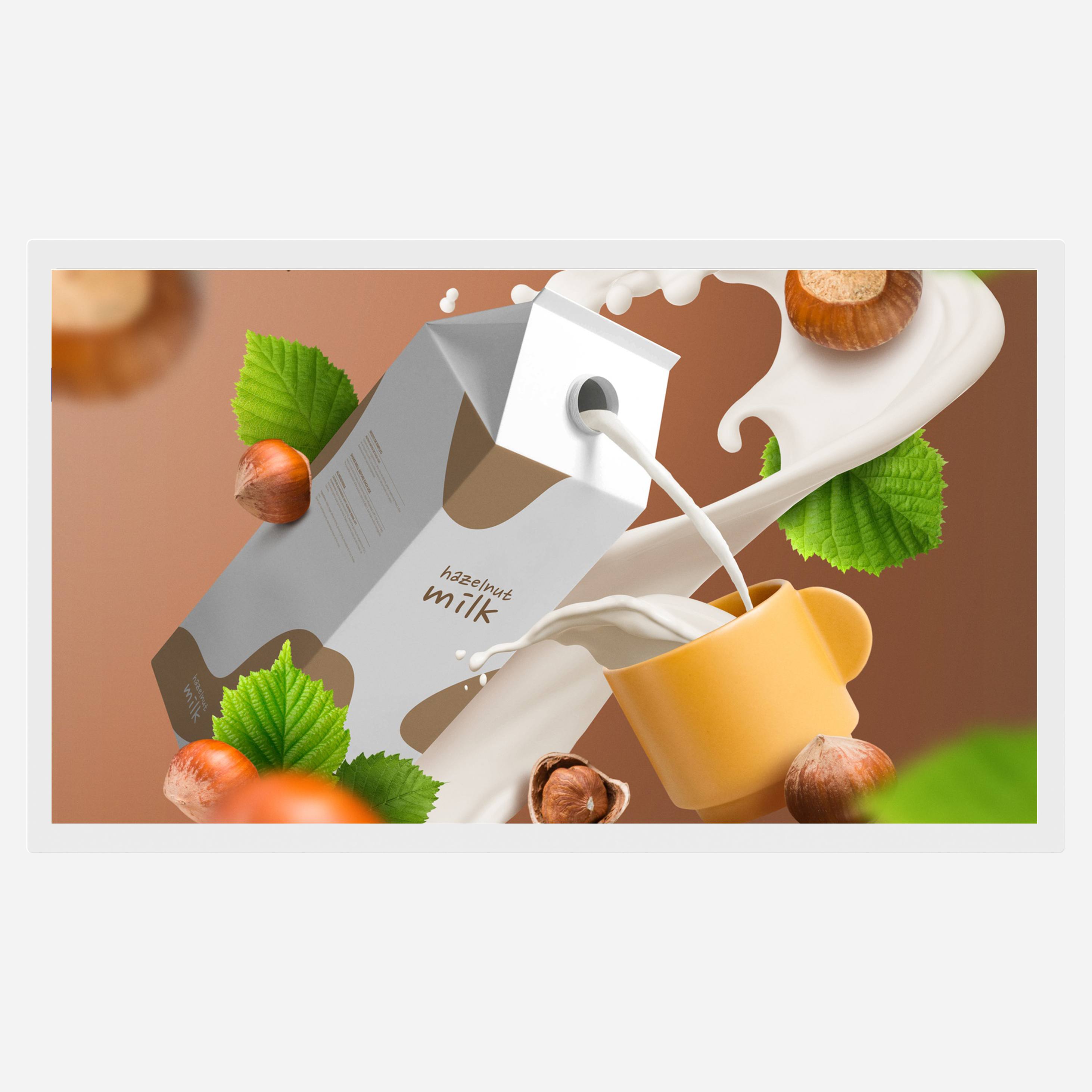

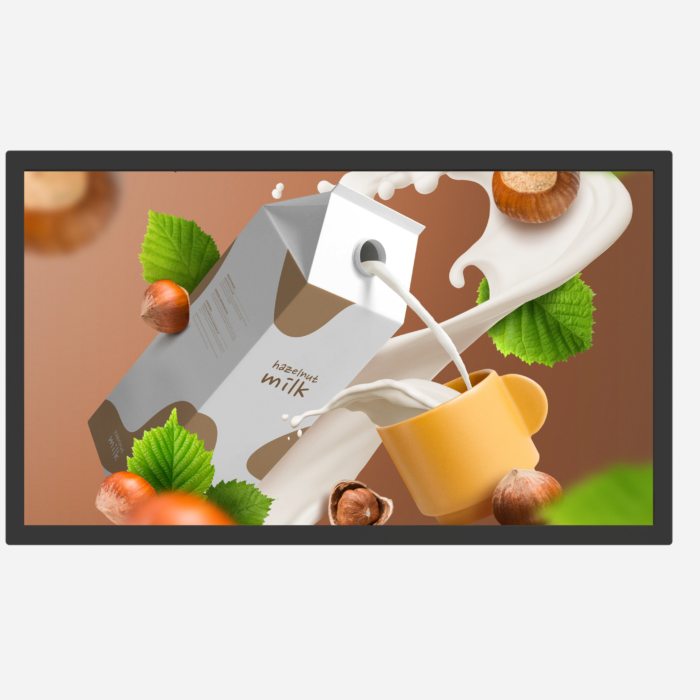

  • Elegant frame Design for Selection
  • Auto start playing advertising contents after power-up
  • Playlist Support
  • Scheduling support
  • Slide effect for advertising effect
  • Support background music
  • Support advertising description message
  • Easy file management for internal storage
  • Control OSD message
  • File sorting

Specification



System

CPU

A133 Quad-Core  ARM Cortex-A53,1.6 GHz



RAM

2GB



Internal Memory

64GB



Operation System

Android 10



Touch Screen

5Point capacitive touch

Respond Time: 2ms

Software

APP

In-house AdMaster App Supported by World Famous Cloud System



Respond Distance

Wireless Control (Unlimited )

Display

Panel

10.1 inch IPS Touch Screen



Resolution

1920*1080 Pixels



Active Area

608(H)x 353.8 mm(V)



Display Mode

Normally black, IPS



Contrast Ratio

1000:1



Brightness

250cd/



Aspect Ratio

16:10

Network

4G

Support JP/EU/AM/CN



WIFI

WIFI6 Double Frequency 802.11a/b/g/n/ac/ax



Bluetooth

Bluetooth 5.4



Ethernet

N/A

Camera

N/A

Interface

Card Slot

TF(up to 64GB)



HDMI Output

N/A



TYPE-C

Support



USB Host

1 * USB Host 2.0



RJ45

N/A



Power Jack

5v DC input



Earphone

N/A

Built-in Stereo Speakers

speaker 2X2W

Multimedia File Support

Video Format

MPEG-1,MPEG-2,MPEG-4,H.263,H.264.VC1,RV,etc.Support up to 1920*1080p

480i/480P/576i/576P/720i/720P/1080i/1080P & RMVB



Picture Format

JPEG / BMP / GIF / PNG,etc.



Audio Format

Mp3 / WMA / OGG / AAC / APE / FLAC / WAV,etc.

Power

Power Input

AC100-240v,50/60HZ



Standby Power

≤1W,Support the low power standby mode



Power Rating

≤10W

Main Features

1. FHD 1080P Video&Audio Playback Function

2. Auto Photo&Music&Video Start Up & Schedule Auto On/Off

3. Main Function:Auto Play + Playlist + Schedule + Slide Effect + Subtitle + Easy Management+ Clock + File Sorting

4. Special Features:Motion Sensor+Remote Control+Auto Rotation

5. Elegant frame Design for Selection

6. Auto start playing advertising contents after power-up

7. Playlist Support

8. Scheduling support

9. Slide effect for advertising effect

10. Support background music

11. Support advertising description message

12. Easy file management for internal storage

13. Control OSD message

14. File Sorting

Applicable Scenarios:



Restaurants/Airports/Supermarkets/Cinemas/Stores/Franchises/Corporations/Subway Stations/ Train stations/Bus stops/Banks/Hospitals/Schools/

Hotel lobby/Elevator Rooms/Conference rooms/KTV/Bars/Museum etc.

Wall Mounted Hole

N/A

Working Temperature

0-40℃

OSD Language

English & Multi-language Selectable

Unit Size

245.55 *164.35*21.20 mm

Unit Weight

0.368kg

Accessories

Use Manual, Adapter, Bracket, Remote Control(Optional)

Standard Certification:

CE,FCC,ROHS

Details

Description

  • IPS LCD: 27 inch IPS Panel (16:9)
  • Resolution:1920*1080 Pixels
  • Brightness: 250cd/m2
  • Contrast: 300-500 : 1
  • Picture file format: JPEG / BMP / GIF / PNG
  • Music file format: Mp3 / WMA / OGG / AAC / APE / FLAC / WAV
  • Movie file format:MPEG1, MPEG2, MPEG4,Xvid,AVI, M-JPEG, H.263, H.264 BP/MP/HP, VP8, WMV9/VC-1
  • Support Full HD MOVIES: Full HD Movie 480i/480P/576i/576P/720i/720P/1080i/1080P & RMVB&H.264
  • Memory Card Slot: Micro SDup to 64GB
  • Interface: Type-C
Model NO

JA270M-H01

FAQ

Q: Does this product works on serial touch ?

A: We support 5 point touch at the same time



Q: Can this be touched through glass?

A:yes, we can touch through the glass.



Q: How many actual touch points?

A:Actually 5 point touch point.



Q:What does it mean it has 5 touch points?

A:We can touch and activate  5 different positions on the screen simultaneously



Q: what's the resolution of the touch detection?

A: We support 1280*800 resolutions with 10.1 inch

We support 1920*1080 resolutions with 15.6"&21.5"&32"



Q: what is it for? and How to use it?

A:It is use for learning, cooking,meeting,TV, game player etc.



Q:Where can I use this product

A:we can use it in restaurants, airports, supermarkets, cinemas, companies, subway stations, train stations, bus stops, banks, hospitals, schools, elevators, and more, meeting your needs across different scenarios.



Q: If I plug my own computer in, will I be able to connect the USB touch to my own computer?

A:yes,We support to operate the machine by mouse when inserting a USB.



Q: How is the touch effect?

A:The touch experience is very good, and the response is very fast



Q: Does the touch screen support HDMI interface?

A:No, our machine have no a HDMI interface.



Q: Does the touchscreen allow someone to click an icon and switch the display page?

A:Yes,user can click the touch screen and switch the display page.

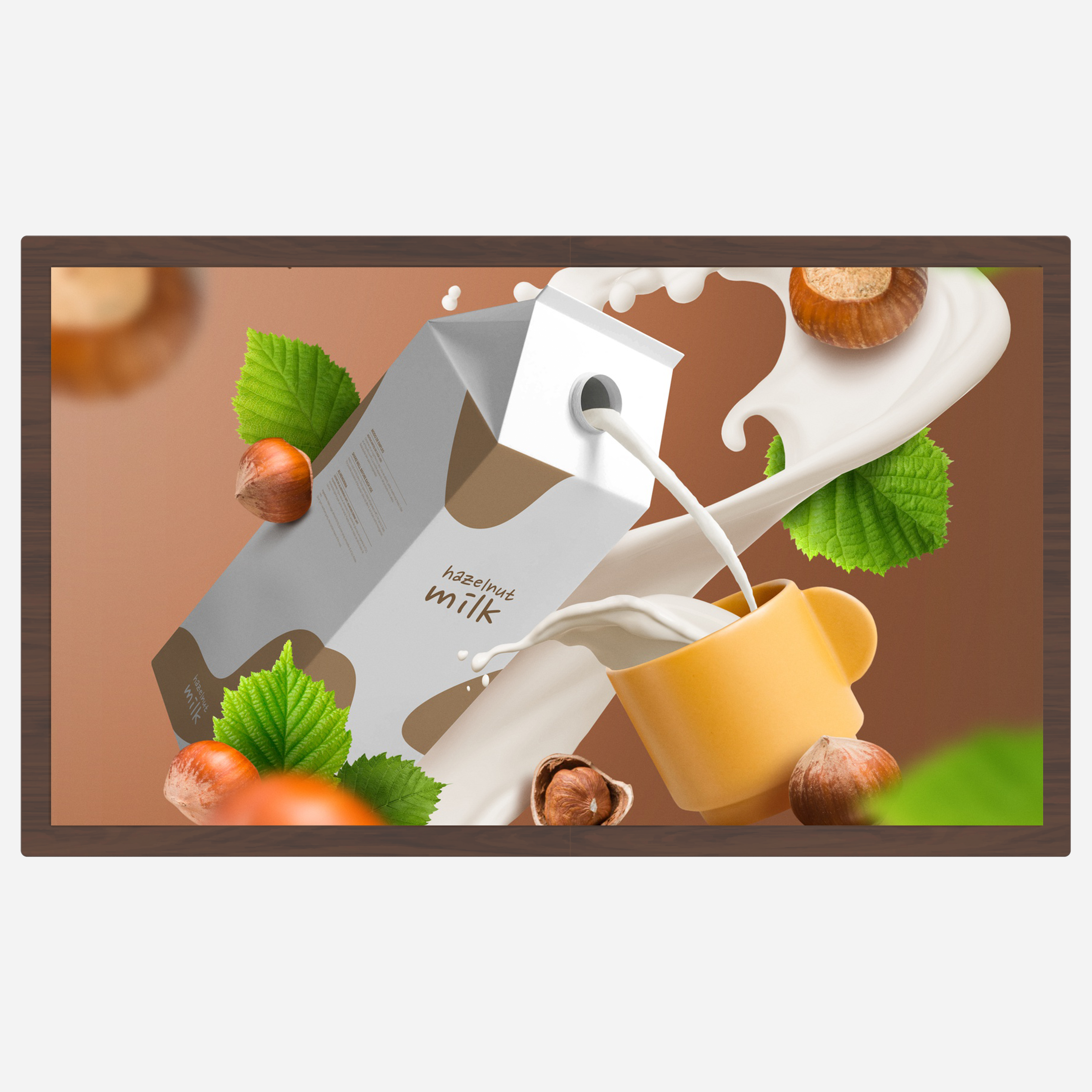

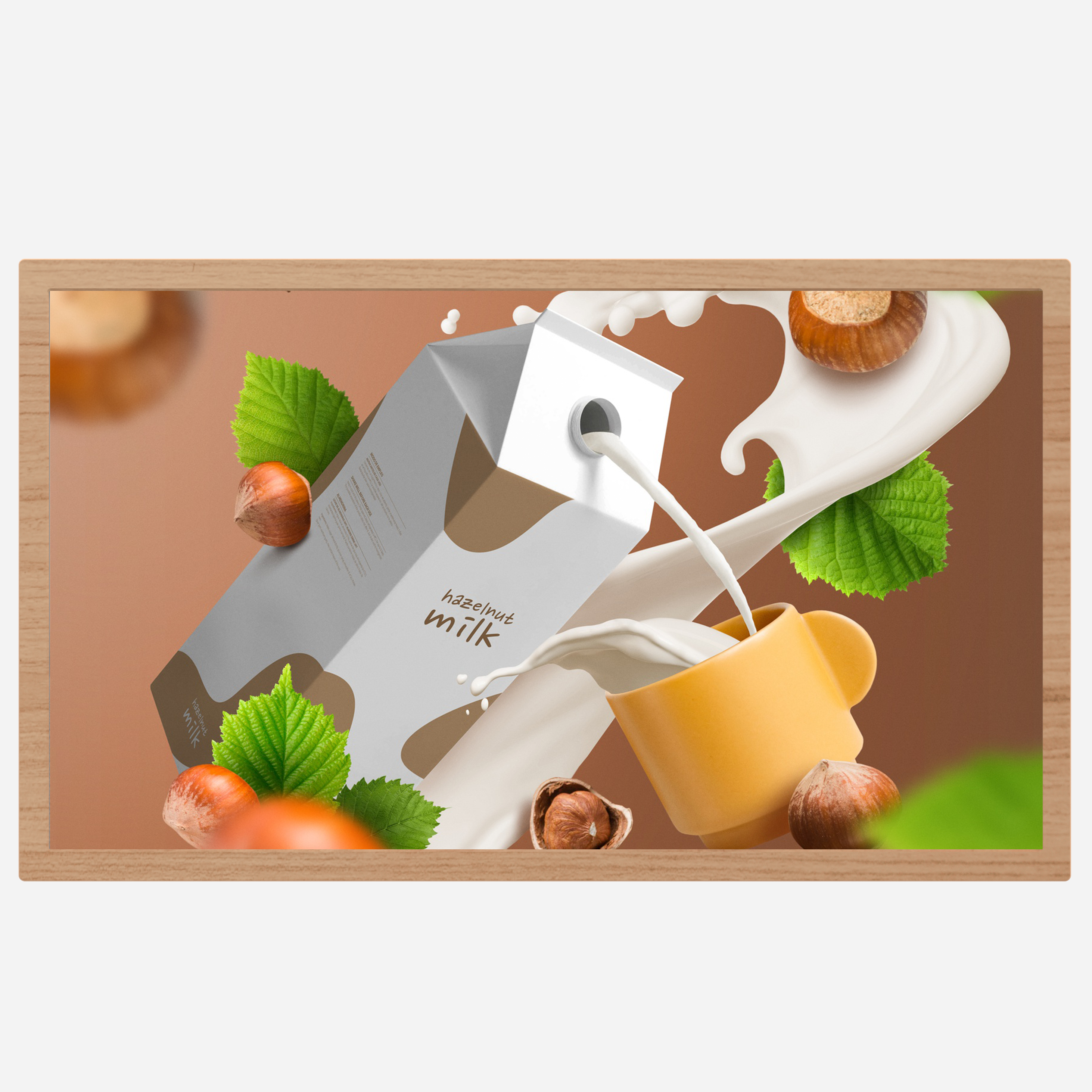

Q: If my screen is 32 inch, may I use 32 inch wooden frame?

A:yes, our machine also support to match the wooden frame, it looks like more high-end



Q: Can you send me the link for calibration software?

A:yes,when you buy the product, you will receive a link and instructions.



Q: Is this monitor a capacitive or resistive touch screen? Thanks.

A:it is capacitive touch screen monitor true 5 points touch

Q:Are there any reported issues with its touch responsiveness?

A:I did not find any reviews mentioning issues with the touch responsiveness. The product description states it has 10-point touch capability and works with gloves.



Q:Does its touch functionality work with gloves on?

A:Yes, according to the product description, the touch functionality support works with gloves on.



Q:Are there any reports of ghosting or inaccurate touch recognition?

A:according to the test report, we did not find any reviews mentioning ghosting or inaccurate touch recognition.



Q:Are wall mounting accessories included with the monitor?

A:yes, we provide desk stander with 10.1"&15.6"21.5"

we provide wall bracket with 21.5"&32"
